| project | parameter |
| power supply voltage | 12V / 24V DC Dual Voltage Universal |
| Pump body structure | Self-priming positive displacement pump (rotary vane pump/gear pump optional) |
| flow | 12 – 70 L/min (by model: small flow 12L/min, medium flow 30–40L/min, large flow 56–70L/min) |
| Rated power | Approximately 150W (high flow rate), operating current approximately 1.8–6.4A (12V) / 0.8–3.5A (24V) |
| Maximum head | Approximately 3m |
| Self-priming height | Approximately 2m |
| motor speed | 2800 RPM |
| Import and export caliber | 16 – 20mm (1-inch thread optional) |
| Work pressure | Approximately 0.3 MPa |
| Work system | Intermittent, with each continuous session lasting 30 minutes. |
| Protection level | IP55 (High Data Rate) |
| Suitable oils | Diesel fuel, biodiesel, kerosene, low-viscosity engine oil, transformer oil (gasoline and water are not permitted). |
| Standard accessories | Power cord (with alligator clips), brass connectors, hose clamps, filter screen |
Comparison of Mainstream Model Parameters
| Model/Brand | Voltage | flow | Power/Current | Features |
| PIUSI Panther DC (Italy) | 12V / 24V | 70L/min@24V, 35–56L/min@12V | — | Built-in bypass valve + 100µ filter, IP55, 1" threaded connection |
| Joydeer DCTP40 | 12V / 24V | 40 L/min | 150W | Rotary vane pump, 2800 RPM, 0.3 MPa, with check valve |
| Domestic economy model (30L/min) | 12V / 24V | 30 L/min | 12V: 6.4A / 24V: 3.5A | 3m head, 3m cable length, high cost performance |

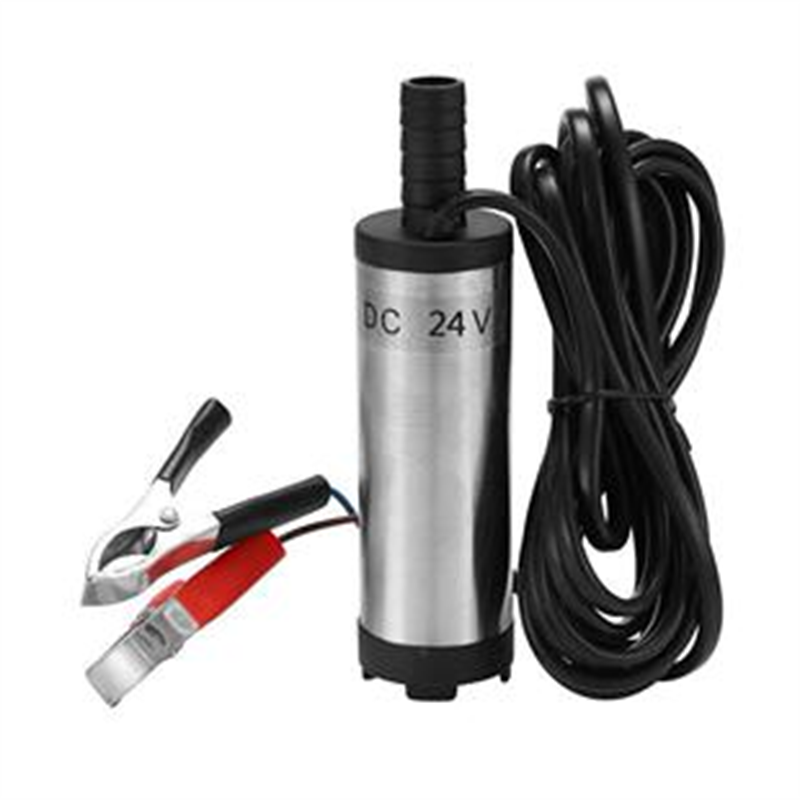

| 12V/24V Mini Submersible Pump | 12V / 24V | 12 L/min | 12V: 1.8A / 24V: 0.8A | Outer diameter 51/38mm, outlet diameter 16mm, cable length 2.4m |
| Medium flow pump (50L/min) | 12V / 24V | 50 L/min | — | Self-priming 2m, duty cycle 30min |

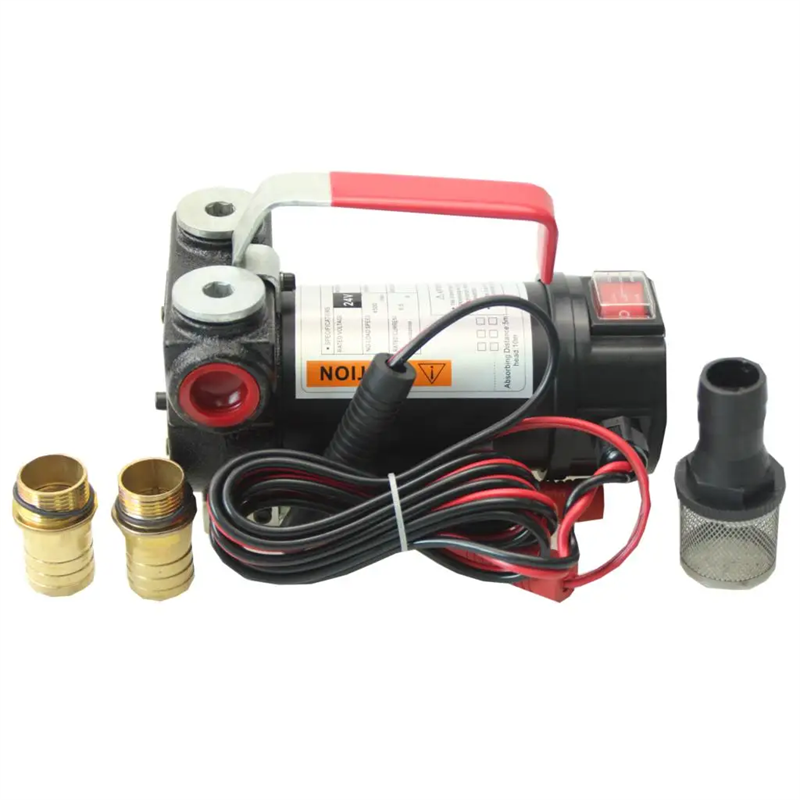

12V/24V DC Electric Fuel Transfer Pump — Portable Diesel & Kerosene Pump
This self-priming positive-displacement fuel transfer pump is powered by 12V/24V DC and built around a high-efficiency rotary vane mechanism. It is designed for transferring diesel, biodiesel, kerosene and low-viscosity lubricating oil. Equipped with battery cables and crocodile clips, it can be powered directly from the battery of cars, trucks, agricultural machinery and construction equipment — the ideal mobile refueling and fuel-transfer solution for logistics, auto maintenance, farming and construction sites.
Key Specifications: Voltage 12V/24V DC (dual-voltage); Rated power 150W; Max. flow rate 40 L/min (56–70 L/min heavy-duty versions available); Max. head 3 m; Self-priming lift up to 2 m; Motor speed 2800 RPM; Inlet/outlet 20 mm (1"); Working pressure 0.3 MPa; Intermittent duty, 30 minutes continuous operation.
Strong self-priming & anti-backflow
1. : Built-in bypass valve and non-return valve ensure quick start-up and automatic flow cutoff after shutdown for higher efficiency and longer service life;
Portable & easy to install
2. : Lightweight body with carry handle and mountable base, plug-and-play without vehicle modification;
Safe & reliable
3. : Overload-protected motor, leak-proof threaded connections, IP55 protection, CE approved for global markets;
Wide media compatibility
4. : Works with diesel, kerosene, machine oil and transformer oil; a strainer filter is included to protect the pump from impurities.
Notice: This pump is intended for diesel, kerosene and other low-flashpoint fuels only. Do NOT use for gasoline or other flammable/explosive liquids, water, or high-viscosity oils. For gasoline applications, please select an explosion-proof pump.
Package Contents: Pump unit ×1, brass fittings ×2, hose clamps ×2, strainer filter ×1, battery cable with crocodile clips ×1.
