Parameter |
Specification |
|
Product Name |
Mini Fuel Dispenser with Hose Reel (all-in-one unit) |
|
Place of Origin |
Wenzhou, Zhejiang, China |
|
Brand Name |
MECLUBE |
|
Overall Dimension |
860 × 470 × 580 mm (86 × 47 × 58 cm) |
|
Flow Rate |
20–60 L/min |
|
Metering Accuracy |
±0.3% |
|
Medium |
Diesel, gasoline, kerosene and other light petroleum products |
|
Inlet Connection |
2 fen (1/4 inch / DN8) |
|
Outlet Connection |
6 fen (3/4 inch / DN20) |
|
Dispensing Nozzle |
Fuel dispensing nozzle supplied with the unit |
|
Hose Reel |
Hose reel mounted on the cabinet, with delivery hose |
|
Control Panel |
Meter display and keypad on the cabinet front |
|
Pump |

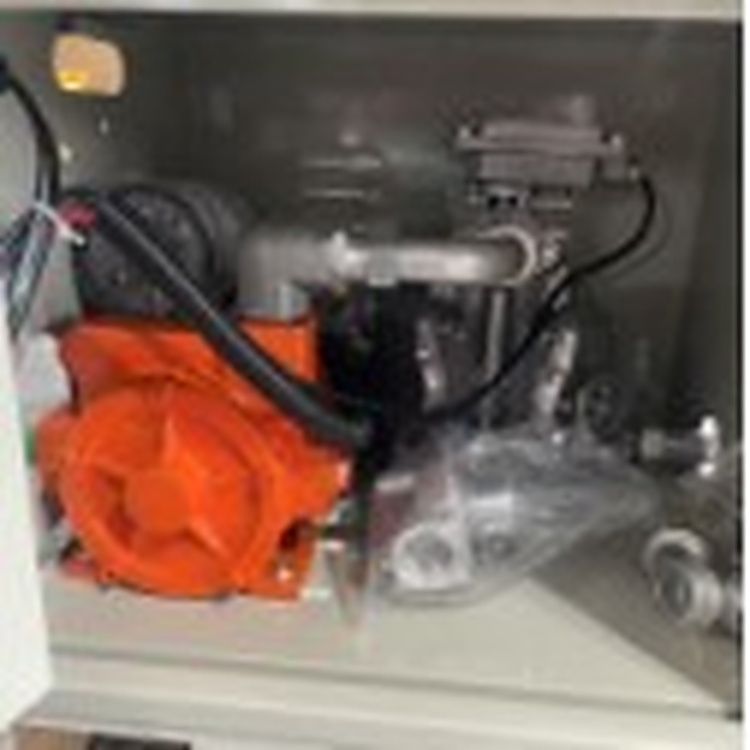

Electric fuel pump with inlet strainer, mounted inside the cabinet |
|
Cabinet |
Powder-coated steel cabinet |
|
Packing |
Wooden case |

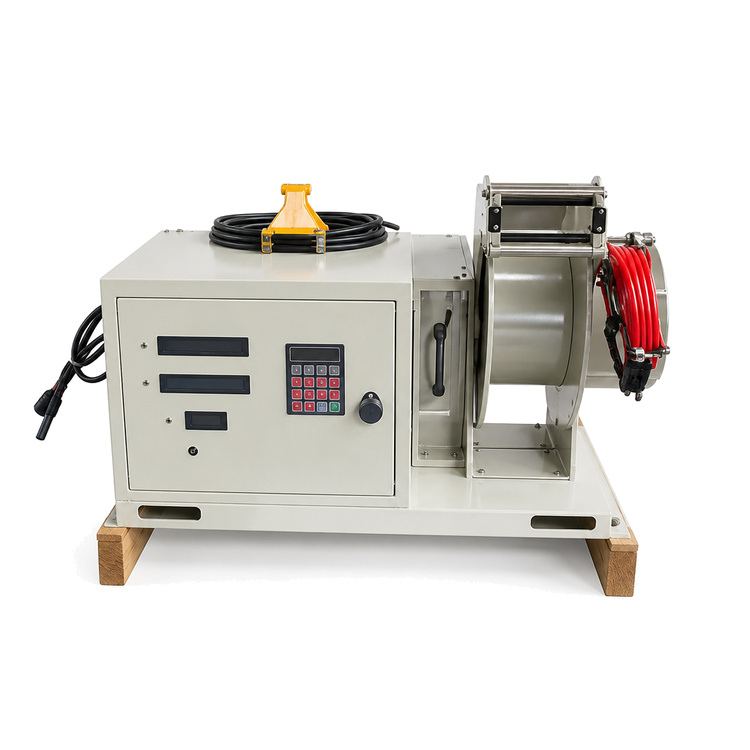

This mini fuel dispenser with hose reel is a complete, ready-to-use fuel dispensing station for workshops, fleets, farms, marinas and fuel depots: one pump, one meter, one hose reel and one dispensing nozzle built into a single 86 × 47 × 58 cm powder-coated steel cabinet. Instead of sourcing a pump, meter, reel and nozzle separately, you bolt down one mini fuel dispenser, connect the suction line and the power supply, and start dispensing.
The mini fuel dispenser meters every litre it delivers. Metering accuracy is ±0.3%, the working flow range is 20–60 L/min, and the medium covers diesel, gasoline, kerosene and other light petroleum products. The inlet takes a 2-fen (1/4 inch / DN8) connection and the outlet a 6-fen (3/4 inch / DN20) connection, and a dispensing nozzle is supplied with every unit.
Because the pump, the meter, the hose reel and the nozzle of this mini fuel dispenser are matched and function-tested as one assembly, there is no field calibration between separate devices, and the unit is ready to dispense on the day the wooden case is opened.
