Parameter |
Specification |
|
Product Name |
Diesel Fuel Transfer Pump, Hose Reel, Filter & Flow Meter (complete assembly) |
|
Place of Origin |
Wenzhou, Zhejiang, China |
|
Brand Name |
MECLUBE |
|
Flow Rate |
20–60 L/min |
|
Metering Accuracy |
±0.3% |
|

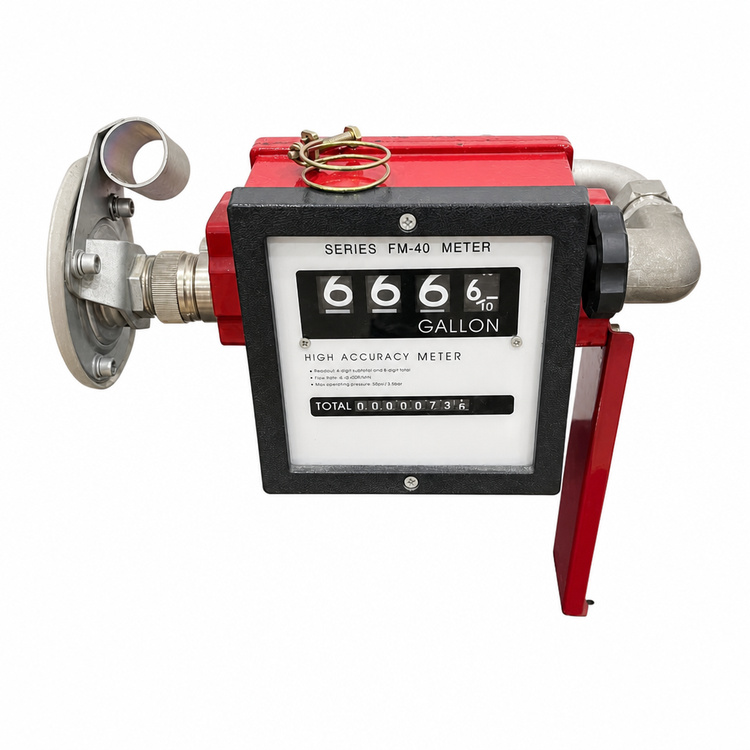

Flow Meter |
FM-40 series high-accuracy mechanical meter |
|
Meter Display |
4-digit resettable subtotal + 8-digit totalizer |
|
Meter Max. Working Pressure |
50 psi / 3.5 bar |
|
Medium |
Diesel, gasoline, kerosene, biodiesel (petroleum-based fuels) |
|

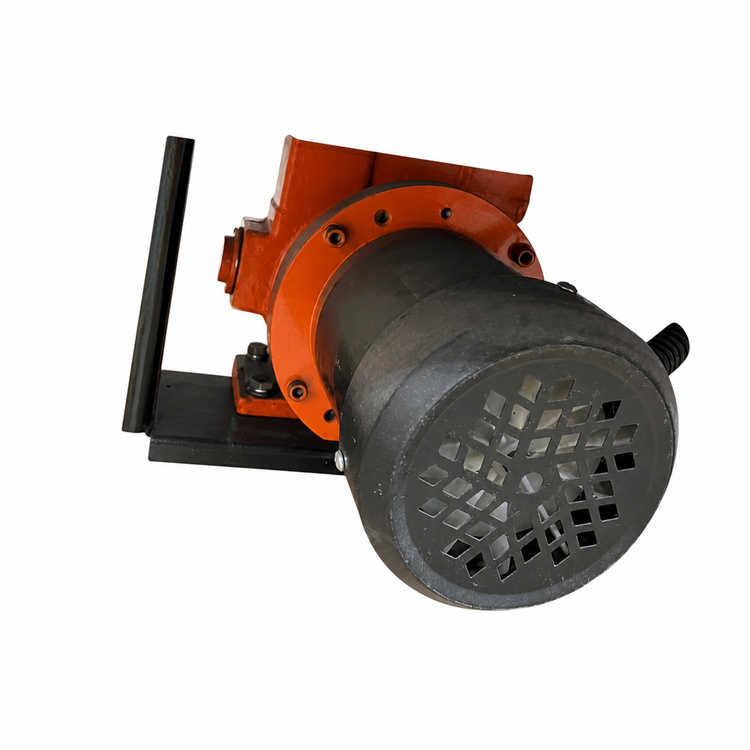

Pump Type |
Electric fuel transfer pump with inlet suction strainer |
|
Motor Voltage / Phase |
12V/24V/220V |
|
Hose Reel |
Retractable steel reel, guide rollers, swivel joint, adjustable tension |
|

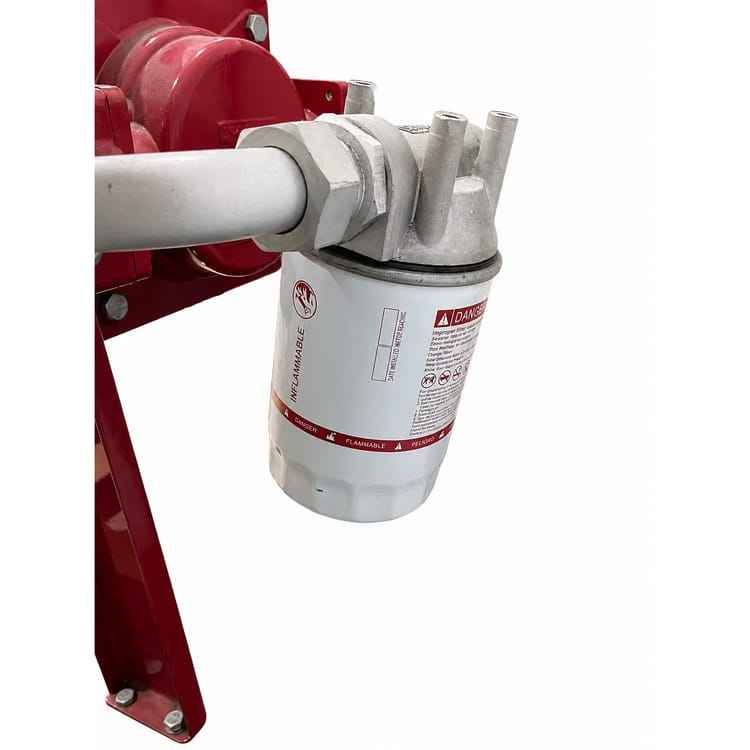

Filtration |
Spin-on fuel filter with cast aluminium head |
|
Frame |
Powder-coated welded steel base plate with control box |
|
Overall Dimension |
660 × 400 × 780 mm (66 × 40 × 78 cm) |
|
Packing |
Carton/wood |
This diesel fuel transfer pump with hose reel, filter and flow meter is a complete, ready-to-mount dispensing unit for workshops, fleets, farms, marinas and fuel depots: one pump, one filter, one hose reel and one flow meter on a single frame. Instead of buying a pump, a reel, a meter and a filter separately, you install one integrated fuel transfer pump on a compact 66 × 40 × 78 cm powder-coated steel frame.
The fuel transfer pump delivers 20–60 L/min, the FM-40 mechanical meter holds ±0.3% accuracy, and the retractable hose reel keeps the delivery hose coiled, protected and ready for the next fill. A spin-on fuel filter with a cast aluminium head captures water and fine particulate on the pressure line, before it can reach the flow meter and the vehicle tank.
Every fuel transfer pump is factory-built on one welded base plate and shipped as a single item, so commissioning means bolting down the frame, connecting the suction line and wiring the power supply.
