Product Name |
Pump Unit with Digital Gear Flow Meter Assembly |
|
Brand Name |
MECLUBE |
|
Place of Origin |
Wenzhou, Zhejiang, China |
|
Flow Rate |
20-60 L/min |
|
Medium |
Diesel, gasoline, kerosene and other light petroleum products |
|
Pump Type |
Positive displacement gear pump, electric motor driven |
|
Meter Type |
Digital gear flow meter with LCD display and membrane keypad (preset / batch dosing) |
|
Overall Dimensions |
350 x 310 x 230 mm (35 x 31 x 23 cm) |
|
Mounting Frame |
Folded steel plate, red powder coating, slotted fixing holes |
|
Motor Voltage / Power |
12V/24V/220V |
|
Inlet / Outlet Size |
0.75”/1”/1.5” |
|
Packaging |
Wood/Carton |

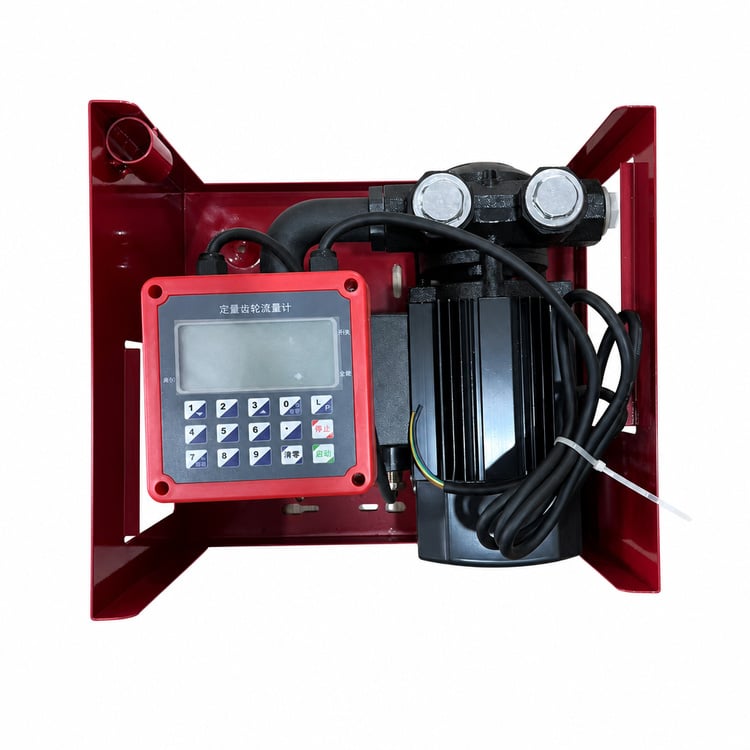

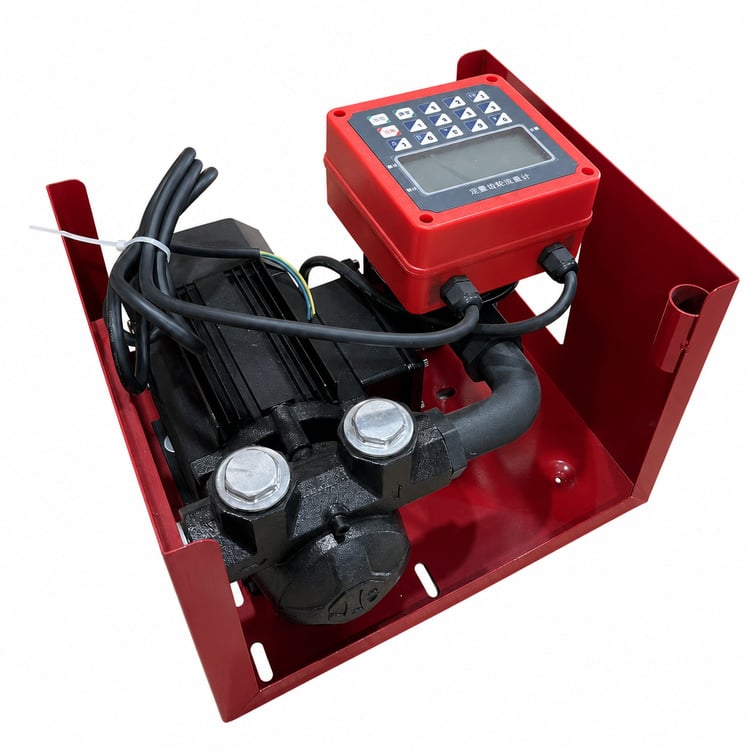

This fuel transfer pump with digital gear flow meter is a complete pump-and-meter assembly built for accurate dispensing of diesel, gasoline, kerosene and other light petroleum products. The electric motor, the cast-iron gear pump and the digital metering head are pre-assembled and tested on one compact 35 x 31 x 23 cm steel frame, so the unit can be bolted down, connected and put to work without building a piping and metering system on site.
Supports personalized customization
